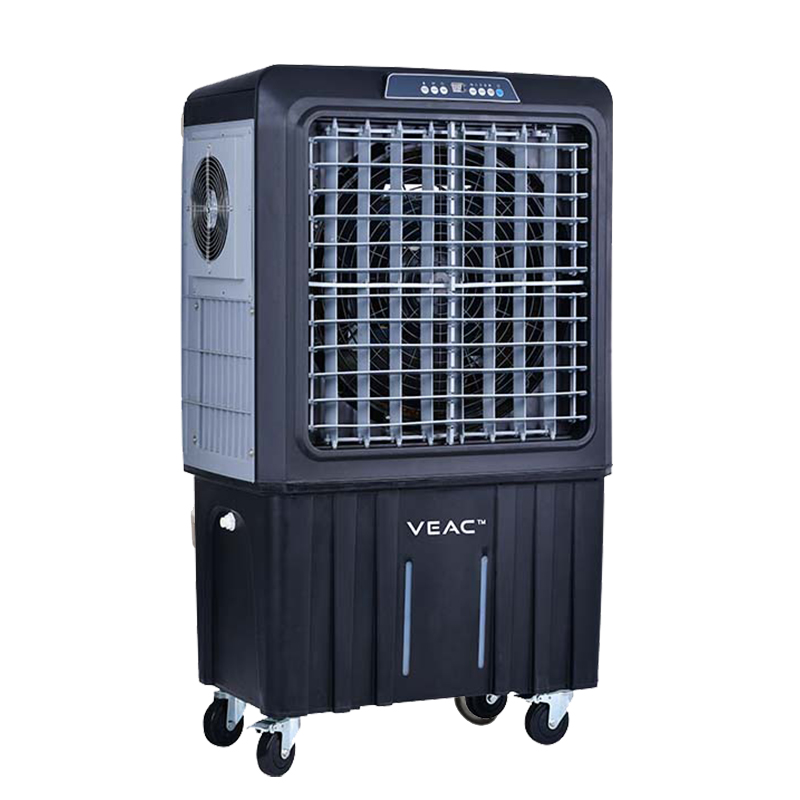

VEAC™ stands for Vankool Evaporative Air Conditioner,which is the world’s 1st commercially used Eco-friendly air conditioning system with proprietary technology.
Different from an independent evaporative cooling system or a conventional air conditioning system, VEAC™ employs an innovative system integrating an evaporative cooling process and combining it with a refrigeration cycle to achieve optimal cooling performance at approximately 25℃
| Model No. | VEAC09 |
| Airflow (m3) | 9000 |
| Cooling Capacity (BTU/H) | 7000 |
| Refrigerant | R410A |
| Input Power (W) | 1180 |
| Voltage (V) | 220 |
| Rated Current (A) | 5.3 |
| Noise (dB) | ≤65 |
| Fan Type | Axial 4 blades |
| Fan Speeds | 3 |
| Water Consumption (L/H) | 6-9 |
| Water Tank (L) | 100 |
| Dimensions (mm) | 790 x 520 x 1350 |
| Applicable Area (m2) | 40-50 |
| Loading Qty (1X40HQ) | 110 |

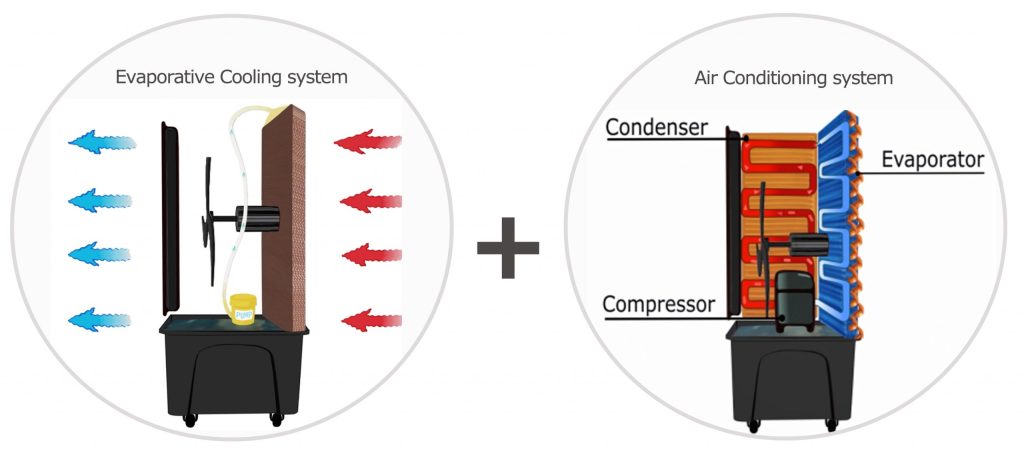

Two cooling systems are included in VEAC ™.
The first one is an evaporative cooling system which is using water evaporation to cool the air. The second system is an air conditioning system which is using compressor technology.

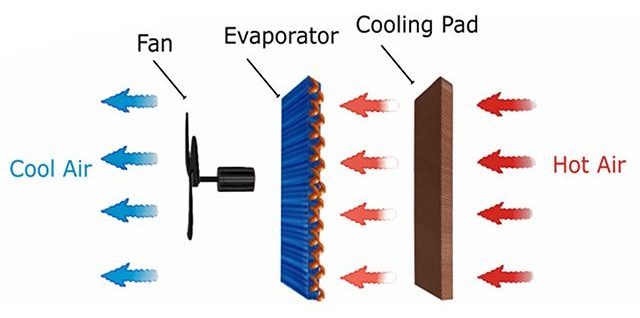

The hot air will go through the cooling pads and the evaporator, subsequently, the cool air will be pulled out by a fan.
A VEAC ™ compressor evaporative cooling system can offer an ideal cooling solution by integrating a compressor-based air conditioning system with a traditional evaporative cooling system. Through the combination of these two cooling methods, a production hall or building can achieve effective cooling year-round while retaining the significant energy-saving advantages of evaporative cooling.
